Guitar Nut Right Hand 44.7mm for Martin®
Tusq Material
For Martin Style Acoustic Setups
.23" Thickness (5.9mm just over 7/32")
.344" Height (11/32" or 8.7mm) in middle saddle side, product is flat bottom
1.761" length (1 3/4" or 44.7mm)
15" Radius
It is pre-shaped and pre-sized. This product is designed to be slightly oversized to allow for variations in guitar setups. You may need to adjust width or height to accommodate your specific setup. Please check dimensions, Martin produces product with various width of nuts.
This product is produced by Graphtech and is not authorized or associated with Martin Guitar Company. This is an aftermarket part, the reference is to communicate the application and use of the product itself.
Martin® is a registered trademark of Martin Guitar Company

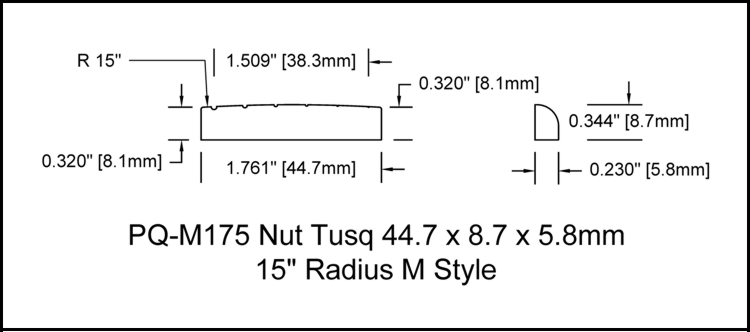

Specifications:
Tusq Nut
For Martin Style Acoustic Setups
0.23" Thickness (5.9mm just over 7/32")
0.344" Height (11/32" or 8.7mm) in middle saddle side, product is flat bottom
1.761" length (1 3/4" or 44.7mm)
15" Radius
String spread is 1.509" (1 1/2" or 38.3mm) Typical for width of nutRadius 15"
Depending on your guitar, you may have to sand for height or adjust string slot cut for setup.
Note: This is a flat bottom nut similar to many modern M Style nuts, it is not tapered to fit older designs.
Tusq Molded Composite Resin Material.
