MANDOLIN TAILPIECE, Screw On, Gold Finish
Quality stamped steel, 8 string
Stamped Steel Tailstop with mounting screws
For loop type strings
Gold Finish

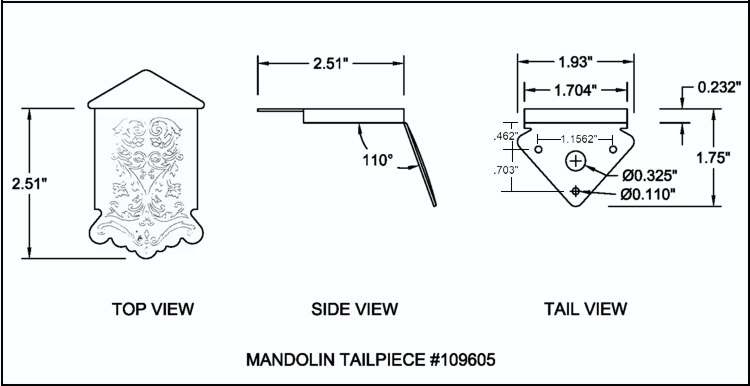

Specifications:
Stamped Steel, Clamshell style two piece tailpiece
Steel is 0.041"
Top: Decorative scroll filigree on top.
Overall length is 2.51"
Width is 1.704"
Overall height with base 0.232"
Base:
Overall length 1.750"
Overall width is 1.64", edge is formed to capture top
String spread 1.15"
Tail:
Triangular shape tail with 3 mounting holes (.11" diameter)
Unit has end pin hole 0.325"
Mounting Hole dimensions:
Hole diameter is 0.11" (7/64"
Top mounting holes are approximately 1.1562" apart (1 5/32") down from the mount plate approximately 0.462" (15/32")
Bottom mounting holes is on center approximately 0.703" down from the first set of mounting holes (45/64", slightly more than 11/16"
Kit comes with:
Tailpiece
3 mounting screws in matching finish.
Gold Finish
