Guitar Nut Right Hand 46mm M Style

Bone
Right Hand

Modern M Style

.25" Thickness (6.35mm 1/4")
.338" Height (21/64" or 8.6mm) in middle
1.812" length (1 13/16" or 46mm)

This is a bone nut, the product is formed with Bone material.
It is pre-shaped and pre-sized.

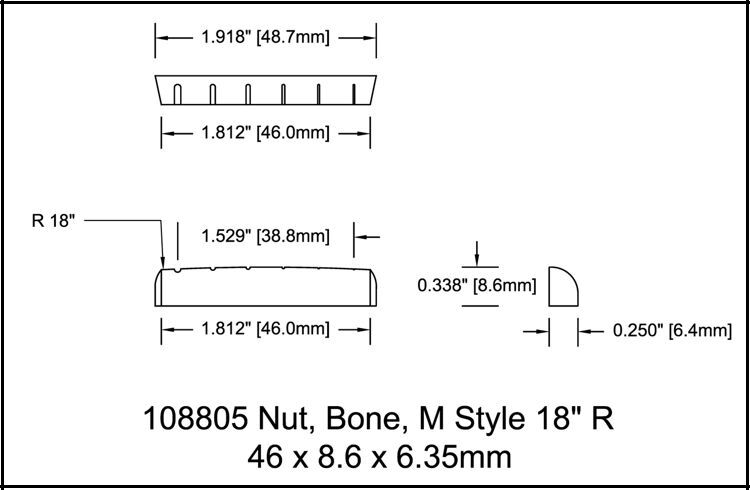

Please note there are a number of width and slot sizes produced for M type guitars, please check the drawing detail for fit for your application.

Specifications:

Right Hand

Oxen Bone Nut

.25" width (6.35mm or 1/4")
.338" height (21/64" or 8.6mm) in middle
1st string height is .322" (just over 5/16" (8.2mm)) at top edge of nut
6th string height is .321" (just over 5/16" (8.2mm))
1.812" width (1 13/16" or 46mm)

String spread is 1.529" Typical for width of nut (1 33/64" or 38.8mm)

String slots are set for 12-50 gauge cut.

Radius 18"

Depending on your guitar, you may have to sand for height or adjust string slot cut for setup.

Note: This is a flat bottom nut similar to many modern M Style nuts.

Natural Material

This Product may contain a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more info go to www.P65Warnings.ca.gov

This product is produced for Bitterroot Guitars.
We are not associated with the original manufacturer, these parts originate from our suppliers only.
