Nut Blank Flat Bottom 43.2mm Brass

for Electric Guitars 12 radius

Natural Brass Finish

Please note, this is a blank unslotted nut.

Specifications:

Blank Nut for 6 string Electric guitar setup

Natural Die Cast Brass Part

Unique design allows you to install as a 43.2 mm nut with sanding and adjustment.

1.699" electric setup (43.2mm or 1 11/16")
For Slotted Headstock nut locations

Brass metal nut
Un-Slotted

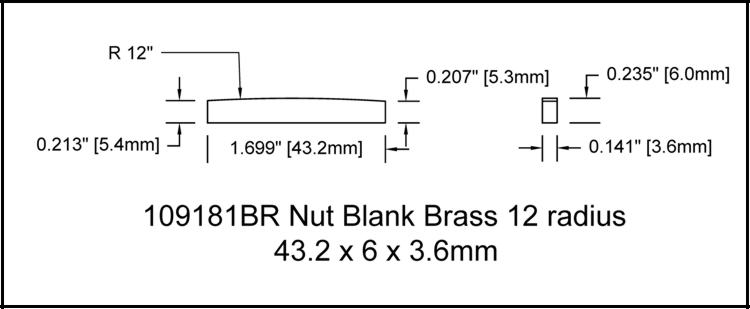

Overall width 1.699" (1 11/16" or 43.2mm)
Overall Depth is 0.141" (9/64" or 3.6mm)

Overall Height is 0.235" (15/64" or 6mm)

Overall height at string 1 (high E) - 0.207" (13/64" or 5.3mm)
Overall height at string 6 (low E) - 0.213" (slightly under 7/32" or 5.4mm)
Upper radius (string) is approximately 12"
NOTE: This is an unslotted brass blank, you will need to set this up and slotted prior to use.
Bottom edge is flat

This product is a die cast molded brass nut.

Please note: due to the variations in guitar setups, you may need to sand or adjust this part to fit your specific guitar. There are a number of radius and bottom setups, widths and other details that vary from guitar manufacturers, if you have questions, please email us, we will try to answer your questions as to fit, we cannot guarantee fit for specific guitars, there are so many variations from year to year and model to model.

You may need to adjust this product to fit your specific application. This could include slotting, filing and sanding to fit.
