Bridge Hardtail T Modern with 6.5K pickup Chrome
T-Modern Style with 6 individual die cast barrel saddles
2 1/8" String Spread (54mm)
Chrome Finish

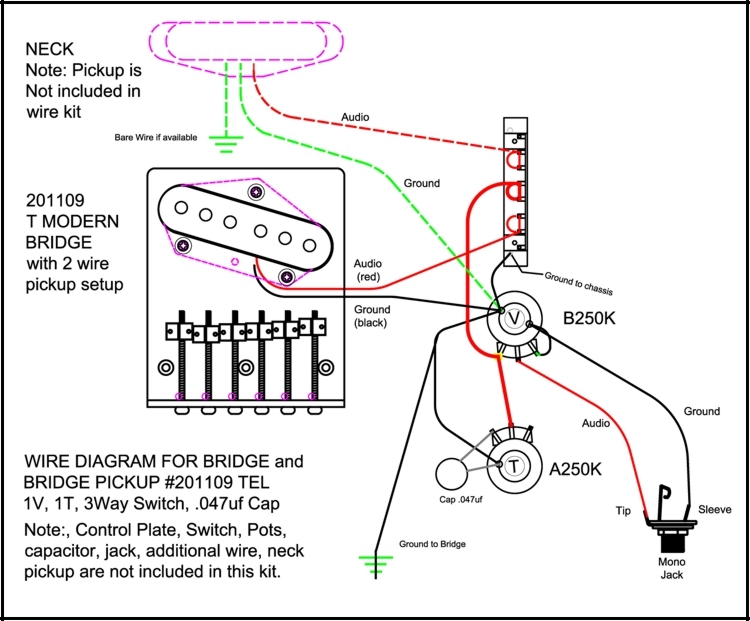

Includes Single Coil 6.5K T Bridge Pickup (2 wire)
Specifications:
Includes Single Coil, T bridge pickup (two wire) 6.5K output. Alnico magnet. Brass back plate.
Saddles are on 10.8 centers and 54mm overall (High E to Low E) (2 1/8" spread)
Saddles are barrel style fully adjustable
Base plate is stamped steel with diecast metal barrel saddles.
Saddles are barrel style fully adjustable
Base plate is stamped steel with diecast metal barrel saddles.
54mm String spread (2 1/8")

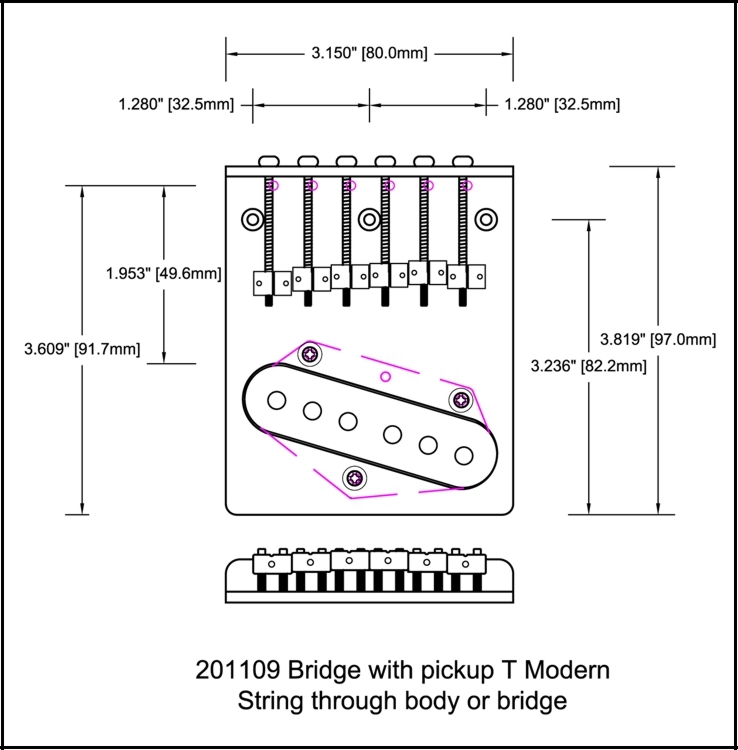

3.819" (about 3 13/16" or 97mm) Deep by 3.15" (about 3 5/32" or 80mm) wide overall dimensions
Overall height is .4425" (just over 7/16 or 11.3mm)
Mounting holes are on 1.28" centers (about 1 9/32" or 32.5mm), they are offset from the front edge 3.236" (3 15/64" or 82.2mm)
Overall height is .4425" (just over 7/16 or 11.3mm)
Mounting holes are on 1.28" centers (about 1 9/32" or 32.5mm), they are offset from the front edge 3.236" (3 15/64" or 82.2mm)
Offset from back edge of pickup to string holes is 1.953" (1 61/64" or 49.6mm) or from front of bridge is 3.069" (3 1/16 or 91.7mm)
String through body or bridge design.
Includes allen wrench for saddle adjustment
3 mounting holes for body, mounting screws are included (3 each same color as bridge).
Chrome Finish
A diagram is available for the actual layout, please email us if you need this.
