Classical Guitar Bridge Right Hand Ebony Finish
Ebony Unfinished
7 29/64" x 1 5/32"

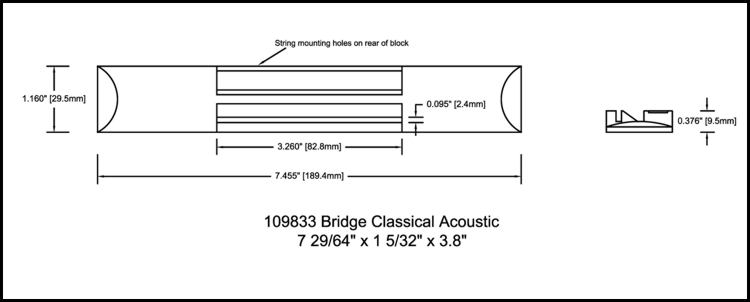

PLEASE NOTE: There are a number of different classical bridges, string mounts and sizes vary, please refer to drawing and description details to determine usage.
Specification:
0.192" Thickness on end tabs (4.9mm or just over 3/16")
Height in Middle 0.376" (9.4mm or 3/8")( does not include saddle height
1.16" Depth (29.5mm or just over 1 5/32") in middle
7.455" length (7 29/64" or 189.4mm)
String Mounting holes on the rear of the bridge (string spread approximately 2.25" (2 1/4" or 57mm)
Saddle is included (Plastic Resin) 3.134" (just over 3 1/8" 79.6mm) x 0.343" (in middle 8.7mm 11/32") x 0.93" (2.35mm or 3/32" thickness)
This is a natural wood product, it is stained for stability and appearance, it has a unfinished wood appearance. Due to the nature of the product, appearance will vary from the sample shown in the picture. Product has an Ebony dye.
