Acoustic Guitar Bridge Reverse Belly Right Hand Rosewood
Rosewood

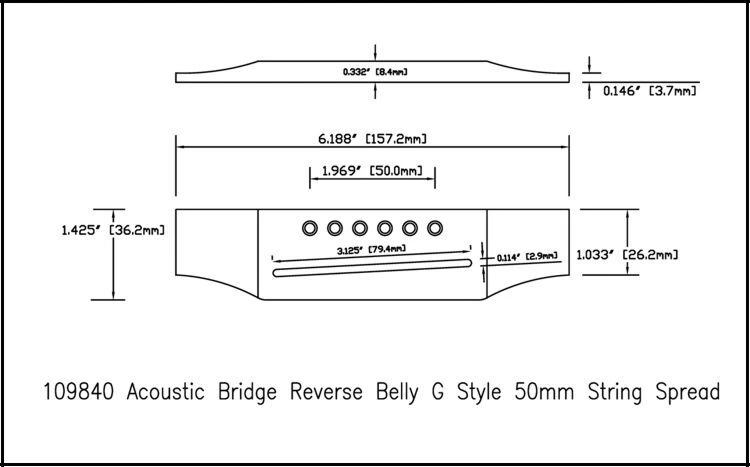

Reverse Belly G Style, Bridge Pin and slot are reversed from standard bridge.
1 31/32" (50mm) String spread
0.332" Thickness (just over 21/64" or 8.4mm)
1.425" Depth (1 7/16" or 36.2mm) in middle
6.188" length (6 3/16" or 157.2mm)
Slot width .114" (2.9mm or just over 7/64")
3.125" slot for saddle (79.4mm or 3 1/8")
This is a natural wood product, it is stained for stability and appearance, but does not have a finish top coat. Due to the nature of the product, appearance will vary from the sample shown in the picture.
|
Specifications: Reverse Belly 1.969" String spread (50mm or 1 31/32") 1 31/32" (50mm) String spread 0.332" Thickness (just over 21/64" or 8.4mm) Slot width .114" (2.9mm or just over 7/64") 1.033" tab depth (just over 1 1/32 " or 26.2mm) Please note: The slot has a slight forward angle on it's construction to help with intonation. Slot is on 3 degree angle Slot width is 0.114" (2.9mm or just over 7/64") |
