Mandolin Tuners, 8 String Geared set.
18:1 Ratio
8 String Nickel set for headstock mounting 1 Right and 1 Left Set
A Type set
Aged White Knobs
Specifications:
Components are die cast metal, stamped steel.
4 Right hand and 4 Left hand open geared tuning machine for mandolin
18:1 ratioComponents are die cast metal, stamped steel.
Aged White Screw Mount Knobs
Nickel, with Aged White knob.
Kit includes:
1 Right hand set with bushings (4 knobs)
1 Left Hand set with bushings (4 knobs)10 mounting screws.

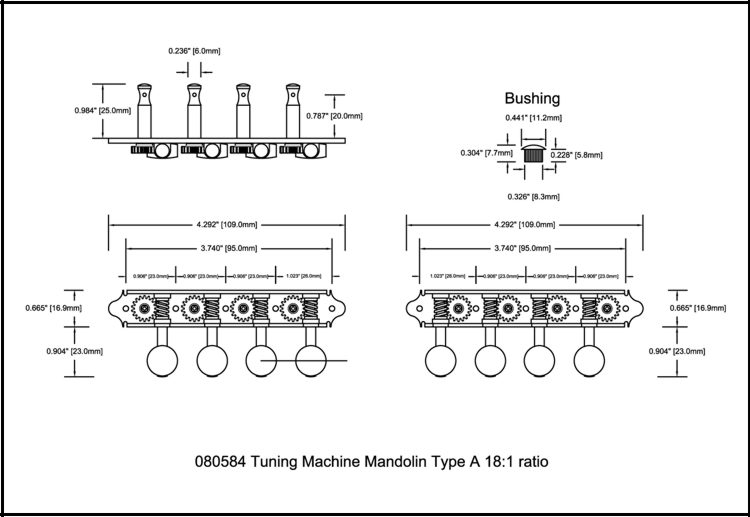

Dimensions:
Posts are on .908" Centers (23mm or 57/64")
Plate Length is 4.292" (109mm OR 4 19/64") x 0.665" Wide (16.9mm or 21/32")
5 mounting holes per side (4 at 29/32" (23mm), 1 at 1 1/64" on center).
Post height to string center is 0.787" (20mm or 25/32")
Bushings (8 included) are 0.326" (8.3mm or just over 5/16")
Outer edge of Bushing is 0.441" (11.2mm or just over 7/16")
Post Opening in Bushing is 0.24" (6.1mm or just over 15/64")
