18 1/2" Length
One Way Single Action adjustment
Cross nut with disc style anchor (one at nut, one anchor at end)
Cross type head on nut
Rod is wrapped in blue shrink wrap to allow for gluing.

Nut thread is 10-32 UNF

Requires:
5mm wide slot (0.197")

Depth of slot 5/16" depending on your specific setup (around 8mm). Applications can vary greatly for the depth or place under the neck on the contour side with an insert stripe.

Cut for nut area is 1.0" x 0.374". (25.4mm x 9.5mm)

Rod is wrapped with blue piping to prevent glue damage.
18 1/2" length (varies slightly due to construction and nut position 18 1/2" - 18 7/8")
Rod length is disc to end of nut.

Nut adjustment is cross style head.

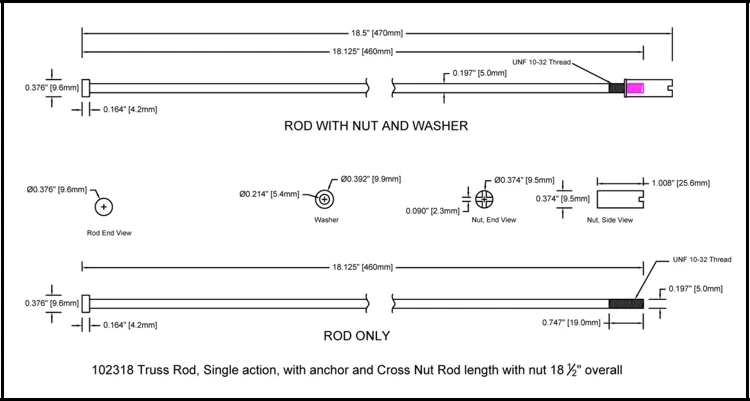

A PDF Version of the drawing for this is available, please email us for information.

PLEASE NOTE: We recommend you bench test the rod prior to installation in your neck. While we do not have many issues with the performance of this rod, but it is a good idea to check the rod prior to installation. Bench testing can be down by placing each end of the rod in a vise and moving the rod in a normal range of motion and beyond to check the rod. After installation the rod can be very difficult to remove or repair. We test all rods here in the US, but we do suggest this additional step to insure the rod is working correctly prior to placement in the neck.

Warranty for this rod is limited to replacement of the rod.or a refund on the product itself. Bitterroot Guitars is not responsible for repair or replacement of any guitar or neck due to installation or product failure. Warranty is limited to replacement or refund of the rod itself and the original cost of the rod. Any modifications to the rod void this warranty. Please contact us if you have an issue with any of our rods.
