17.244" (438mm) Length
Two Way Dual Action adjustment

Ultra light weight strong titanium rod (2.45oz compared to our steel dual action rod is 4.75oz)

Uses a set of dual screw threads (one at nut, one at end)
4mm Allen key head
Rod is not wrapped use caution when gluing in to prevent glue contacting threads

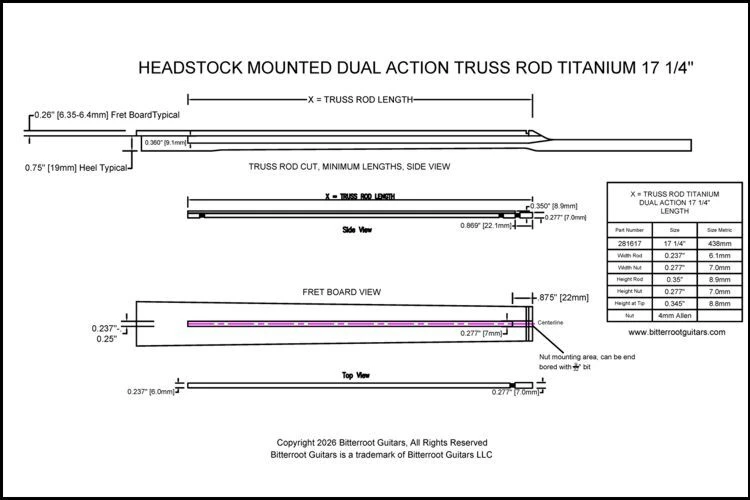

Requires:
0.24" wide slot (just over 6mm or 0.237")
0.36" depth (slightly more than 23/64" or 9.15mm)
Cut for nut area is 0.875" (7/8" or 22mm) x  0.28" (or 71mm).

Two way adjustable rod

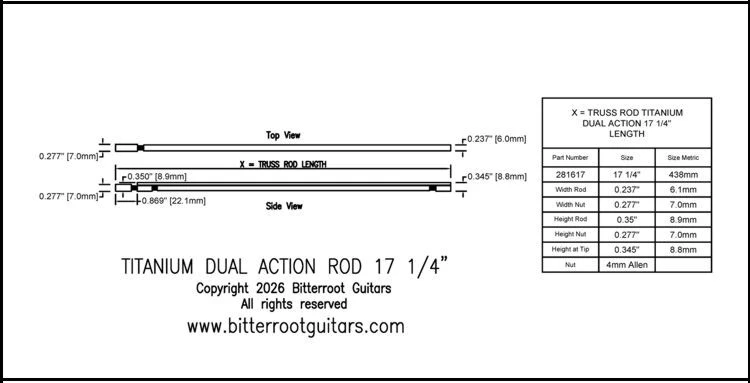

ROD SIZE:
17.244" (438mm) length (varies slightly due to construction 17 1/8" - 17 1/4")

Rod length is tip to end of nut.

Rod height 0.35" (8.9mm or just over 11/32"), height tapers from tip to nut (0.345" to 0.35")

Rod width 0.237" (6.1mm or 15/64")

Nut Diameter 0.277" (7mm or just under 9/32")

Product is welded titanium contstrution dual action style rod

A PDF Version of the drawing for this is available, please email us for information.

PLEASE NOTE: We recommend you bench test the rod prior to installation in your neck. While we do not have many issues with the performance of this rod, but it is a good idea to check the rod prior to installation. Bench testing can be down by placing each end of the rod in a vise and moving the rod in a normal range of motion and beyond to check the rod. After installation the rod can be very difficult to remove or repair. We test all rods here in the US, but we do suggest this additional step to insure the rod is working correctly prior to placement in the neck.

Warranty for this rod is limited to replacement of the rod.or a refund on the product itself. Bitterroot Guitars is not responsible for repair or replacement of any guitar or neck due to installation or product failure. Warranty is limited to replacement or refund of the rod itself and the original cost of the rod. Any modifications to the rod void this warranty. Please contact us if you have an issue with any of our rods.
