Tremolo Cover with slot Import
Single Ply, with Parchment gloss finish and slot for strings.
Includes 6 Chrome pickguard screws
Parchment Gloss Color
Specifications:
Tremolo Cover
1 Ply Plastic Parchment gloss finish
Tremolo Cover
1 Ply Plastic Parchment gloss finish

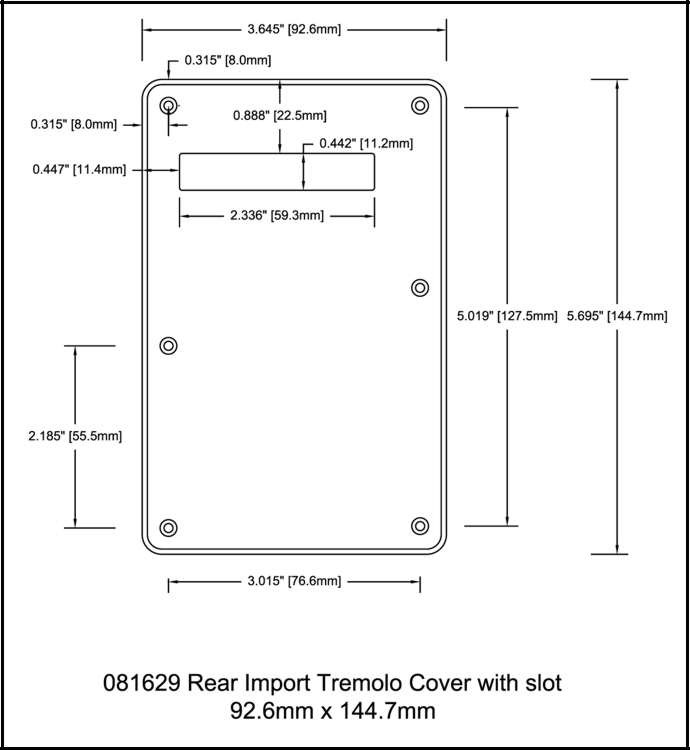

Six Mounting holes, recessed for #4 screws
a. End holes are 0.315" (8mm or .5/16") offset from edge
b. Mid holes are 2.185" (55.5mm or 2 3/16") in from center of mounting holes
Overall size is 5.695" (144.6mm or 5 11/16") x 3.645" (92.6mm or 3 41/64")
(Overall thickness is 0.091" (2.3mm or slightly less than 3/32")
String slot is 0.442" (11.2mm or 7/16") x 2.336" (59.3mm 2 21/64") is approximate size.
Offset of string slot is approximately 0.447"(11.4mm or 7/16") from left edge and 0.888" (22.5mm or 7/8") from the top of the cover
Will fit many import guitar setups, please check your dimensions, you may need to relocate holes depending on your specific application.
Cover includes 6 Chome #4 pickguard screws
