Tremolo 6 String Steel Block Chrome Finish 52.5mm
Brass Saddles
Steel Block
Bitterroot Custom Shop Heavy weight big block tremolo.
Designed for the player.
Kit includes, Tremolo, Whammy bar, claw, tremolo screws, claw screws, tremolo springs, allen wrench.
Specifications:
Tremolo is brass saddle, plated with Chrome finish and steel block weight screwed on.
Overall tremolo weight 14.2 oz, with steel block weight and brass saddles.
Whammy bar is screw in type.
Saddles are fully adjustable brass.

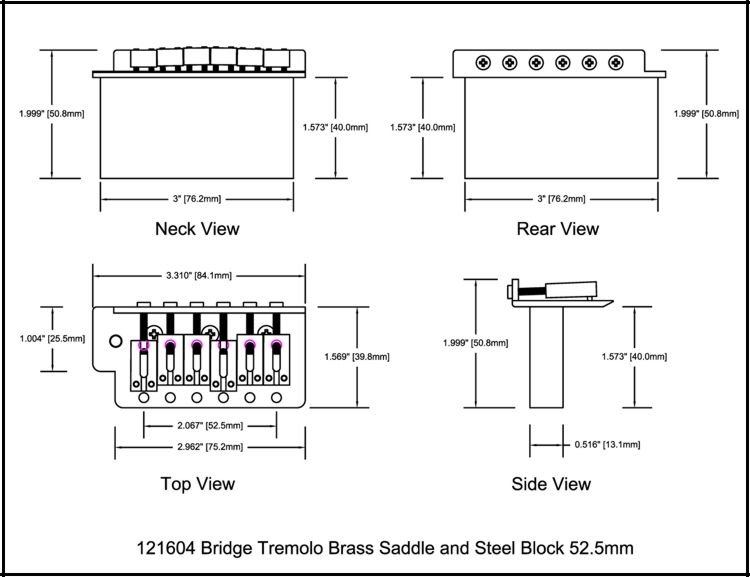

Tremolo plate size is: 3.31" (84.1mm or 3 21/64") width x 1.569" (39.8mm or 1 9/16") deep
Block is machined steel
Block size is: 3.0" (76.2mm or 3") wide x 0.561" (13.1mm or 9/16") overall depth
Saddles are brass
String Spread is: 2.067" (52.5mm or 2 1/16")
Mounting hole (C to C) is: 10.5mm (13/32")
Front Lip width is: 2.962" (75.2mm or 2 31/32")
Overall body depth required: 42mm (1 21/32")
Overall Block depth inside body: 1.573" (40mm or 1 9/16")
This will fit many MIM and similar style import guitars with a 52.5mm string spread and a six hole mounting setup.
Tremolo is brass saddle, plated with Chrome finish and steel block weight screwed on.
Overall tremolo weight 14.2 oz, with steel block weight and brass saddles.
Whammy bar is screw in type.
Saddles are fully adjustable brass.
Tremolo plate size is: 3.31" (84.1mm or 3 21/64") width x 1.569" (39.8mm or 1 9/16") deep
Block is machined steel
Block size is: 3.0" (76.2mm or 3") wide x 0.561" (13.1mm or 9/16") overall depth
Saddles are brass
String Spread is: 2.067" (52.5mm or 2 1/16")
Mounting hole (C to C) is: 10.5mm (13/32")
Front Lip width is: 2.962" (75.2mm or 2 31/32")
Overall body depth required: 42mm (1 21/32")
Overall Block depth inside body: 1.573" (40mm or 1 9/16")
This will fit many MIM and similar style import guitars with a 52.5mm string spread and a six hole mounting setup.
NOTE: So bodies have small tremolo cutouts and may not be able to mount a larger block like this.
NOTE: There are many different MIM setups, please check dimensions for fit.
Kit is complete ready to install
NOTE: There are many different MIM setups, please check dimensions for fit.
Kit is complete ready to install
