MANDOLIN TAILPIECE DIE CAST GOLD
Quality die cast Goldone, 8 string
Die Cast Tailstop with mounting screws
For loop type strings
Gold Finish

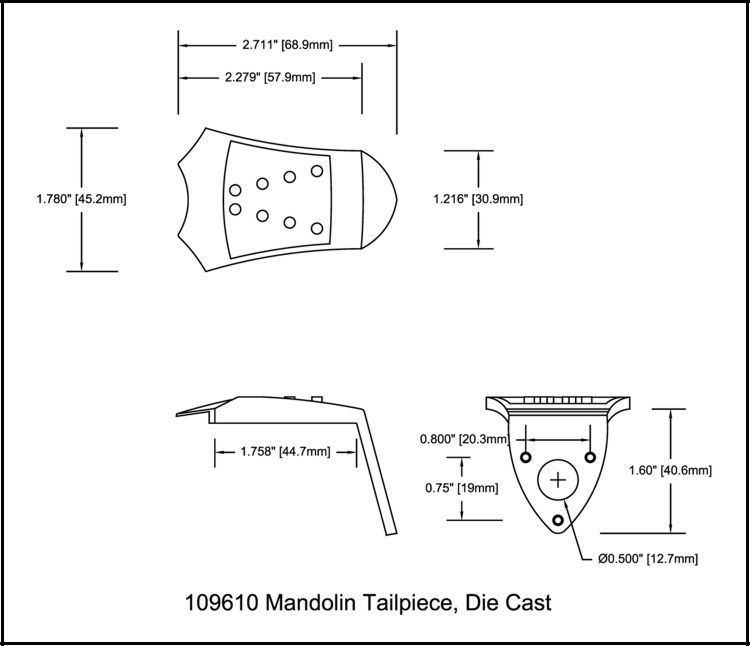

Specifications:
Die Cast Metal, Single Piece
Overall length is 2.711" (2 23/32" or 68.9mm)
Width is 1.78" (1 25/32" or 45.2mm)
Overall height with base 1.60" (1 19/32" or 40.6mm)
Base:
Overall length 1.758" (flat mounting area 1 3/4" or 44.7mm)
Overall width is 1.216" (1 7/32" or 30.9mm)
String setup is in a V Shape with string holes below the decorative fan.
Tail:
Triangular shape tail with 3 mounting holes (.11" diameter)
Unit has end pin hole 0.325"
Mounting Hole dimensions:
Screw hole diameter is 0.091" (under 3/32" or 2.3mm)
Top mounting holes are approximately 0.80" apart (51/64" or 20.5mm)
Bottom mounting holes is on center approximately 0.75" down from the first set of mounting holes (3/4" or 19mm)
Kit comes with:
Tailpiece
3 mounting screws in matching finish.
Gold Finish
This Product may contain a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
For more info go to www.P65Warnings.ca.gov
