Potentiometer Quarter Size Set 250K A B Short Thread
One (A) Logarithmic potentiometer Logarithmic Taper (log) and one (B) Linear potentiometer, Audio, typically used for Tone
Brass Collar Short 6.2mm thread length (just over 15/64")
For use in guitar audio circuits
Alpha Korea Product
Specifications:
Alpha Korea
Set One A Log potentiometers plus one B Linear potentiometer
Audio Potentiometer for applying resistance to audio circuit

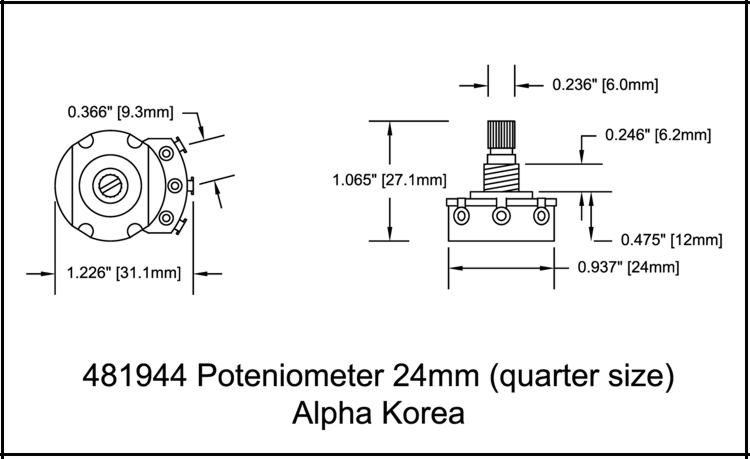

Set 250K A B Quarter Size (approximately 7/8" diameter (24mm))
Split shaft for 6mm bushing
18 tooth spline
Overall shaft thread length is .245" (just over 15/64" or 6.2mm) designed for pickguard applications.
Shaft mounting hole required 5/16" (8mm)
Includes nut and washer
- POTENTIOMETER, ROTARY, 250K OHM, 20%
- Track Resistance:250k ohm
- Track A Taper:Log (Audio)(Typically Tone)
- Track B Linear taper (Audio)(Typically Volume)
- No. of Turns:1
- Resistance Tolerance:± 20%
- Power Rating:250mW
- Potentiometer Mounting:Panel
- No. of Gangs:1
- Adjustment Type:Side
- RoHS Compliant: Yes
- Alpha Korea RV2401-Short Shaft
