Potentiometer, Dime Size, Brass Shaft Audio Set
500K Resistance A Logarithmic of 500K Pots
One (A) Logarithmic potentiometer Logarithmic Taper (log), Audio, typically used for Tone
For use in guitar audio circuits
Alpha Korea Product
Specifications:
Alpha Korea
One A Logarithmic potentiometer
Audio Potentiometer for applying resistance to audio circuit

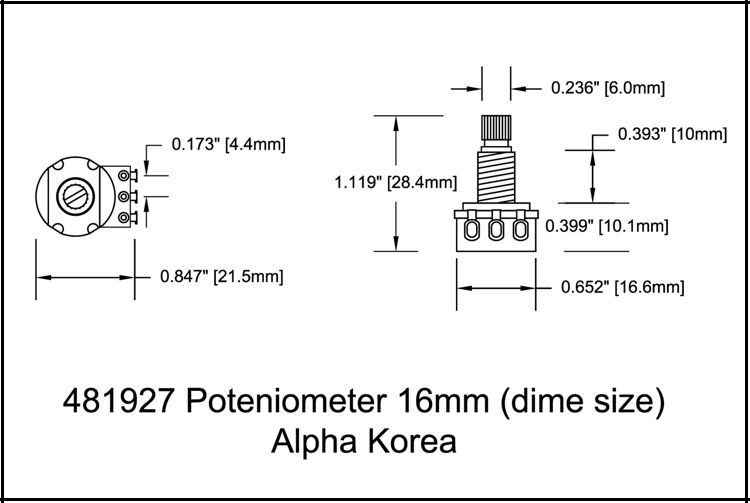

500K A Logarithmic Dime Size (approximately 21/32" diameter (16mm))
Split shaft for 6mm bushing
18 tooth spline
Overall shaft thread length is 3/8" (10mm)
Shaft mounting hole required 5/16" (8mm)
Includes two nuts and washers
- POTENTIOMETER, ROTARY, 500K OHM, 20%
- Brass Shaft
- Track Resistance: 500k ohm
- Track A Taper:Log (Audio)(Typically Tone)
- No. of Turns:1
- Resistance Tolerance:± 20%
- Power Rating:250mW
- Potentiometer Mounting:Panel
- No. of Gangs:1
- Adjustment Type: Side
- RoHS Compliant: Yes
- Alpha Korea RV1602
