Pickup Hot Blade Dual Coil T Bridge Pickup 12K

All of the classic twang of a standard T type pickup without the hum

12K Pickup, with Black Finish

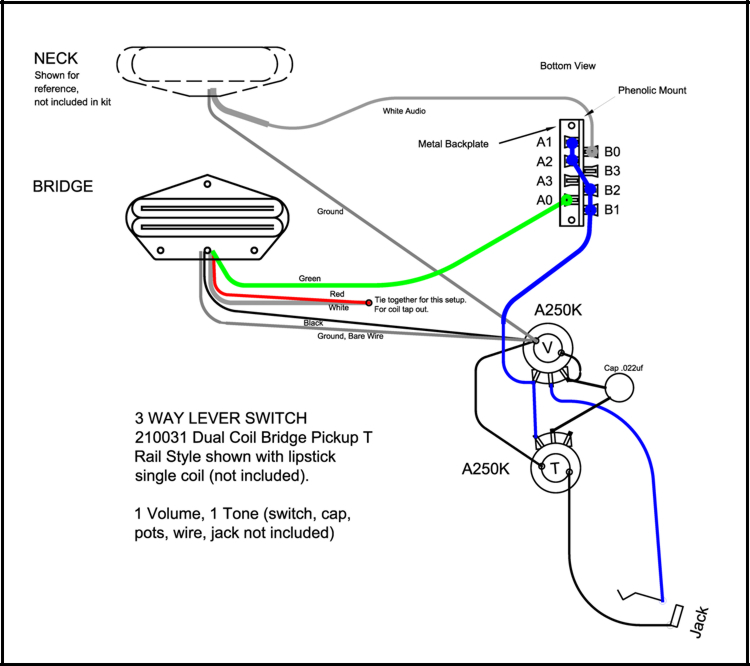

Note Wiring diagram shows multiple pickups, only one bridge pickup is included in this product.

Hum canceling dual coil (side by side)

Specifications:

Black T Type Dual Coil Bridge pickup (compact design side by side coils)
12K resistance
Single Dual Coil Style (Side by Side)
Poles are blade type, black finish
3 Mounting holes to fit a standard T Type bridge or pickup ring.
Alnico 5 Magnet
Four wires with cover ground (bare)
Wire Gauge is UEW #42

Top of bridge has metal blade type poles
Insulated tape around coil similar to OEM T Type bridge setups for single coil.

Blade type (arched)(58mm)

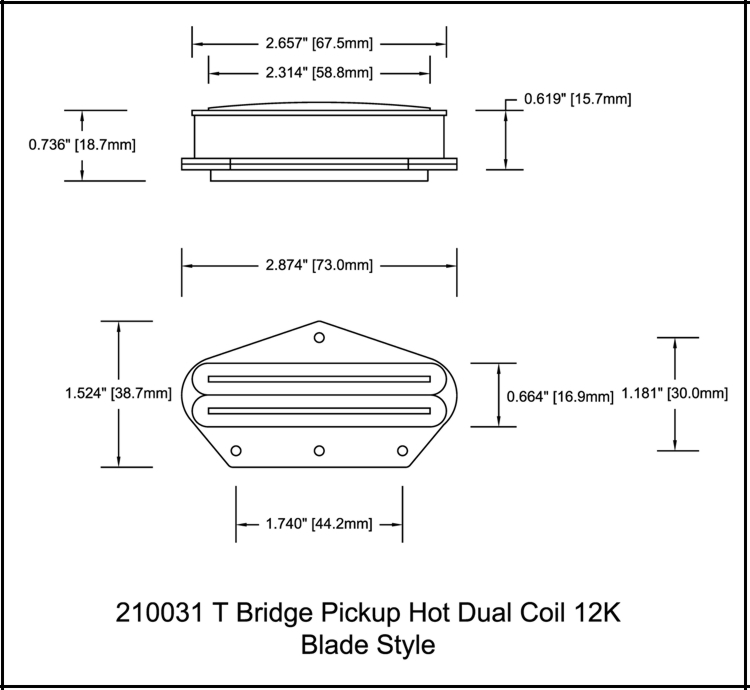

Pickup dimensions are:

Width: 2.874"w (2 7/8" or 73mm)

Depth: 1.524" (1 17/32" or 38.7mm)

Height is 0.73.6" (47/64" or 18.7mm) (pus blade height)

Coil (Side by side design) is 2.657" W (2 21/32"or 67.5mm) x 0.664" (41/64" or 16.9mm)

Excellent Direct Replacement Pickup

Mounting Screws and Springs are included (6-32 x 11/16" Phillips-head)
