Pickup, Chrome Tube 80mm Lipstick Style
7.5K Pickup, with Chrome Finish
Ceramic Magnet
For T or S style guitars
2 Leads plus ground (allows for polarity switching)
Classic Chrome tube lipstick shape. 80mm size.
Specifications:
Chrome 80mm Lipstick style pickup
7.5K resistance
Mounting holes are 71mm (2.795" or 2 51/64") center to center
Pole orientation is South
Ceramic Magnet

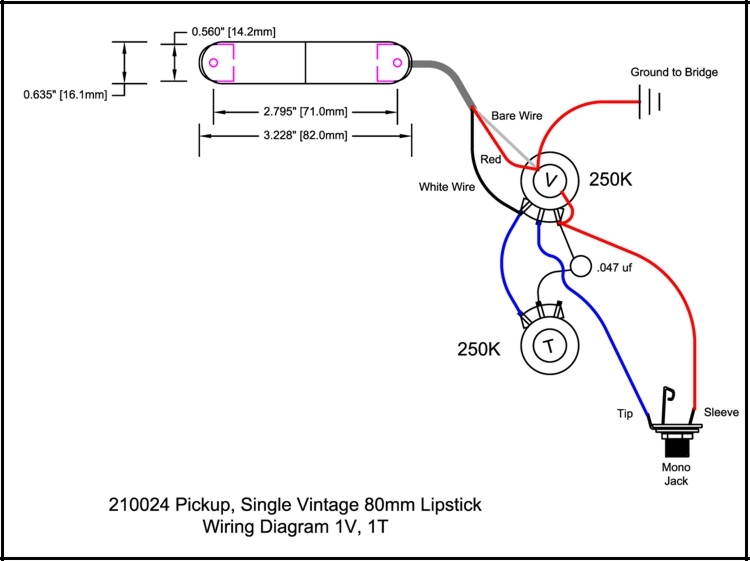

Two wire with cover ground wire (braided) (two wire setup allows for polarity reversal)
Wire Gauge is UEW #42
Overall Base length is 3.228" (3 15/64" 82mm) x 0.56" (9/16" 14.2mm) (Note, the tube is wider)
Cap dimensions are 0.635" (5/8+ or 16.1mm) wide by 3.15" (3 5/32" or 80mm)
Cover height from base to top is 1" (25.4mm) at center
Excellent Single Coil Pickup
Includes mounting screws and springs. (thread is M3x0.6)
Chrome 80mm Lipstick style pickup
7.5K resistance
Mounting holes are 71mm (2.795" or 2 51/64") center to center
Pole orientation is South
Ceramic Magnet
Two wire with cover ground wire (braided) (two wire setup allows for polarity reversal)
Wire Gauge is UEW #42
Overall Base length is 3.228" (3 15/64" 82mm) x 0.56" (9/16" 14.2mm) (Note, the tube is wider)
Cap dimensions are 0.635" (5/8+ or 16.1mm) wide by 3.15" (3 5/32" or 80mm)
Cover height from base to top is 1" (25.4mm) at center
Excellent Single Coil Pickup
Includes mounting screws and springs. (thread is M3x0.6)
