Pickguard Mounting Bracket, Archtop Side Mount
Adjustable side mount style
With mounting bolt and screws
Nickel Trim
Specifications:
Designed for 335® and 175®
Metal Bracket with Nickel Finish
Kit includes Bracket and mounting screw
Bracket is 34mm (2 21/64" long) with mounting hole for body.
Threaded bar is 59.2mm (2 21/64") long.
Kit includes Bracket and mounting screw
Bracket is 34mm (2 21/64" long) with mounting hole for body.
Threaded bar is 59.2mm (2 21/64") long.
Distance from Notch to center of mounting hole is 10.8mm (27/64")
Designed to mount to the side of the body with screw (included)
All metal bracket
These parts do not originate from the original OEM manufactures unless specifically identified as such. Gibson®, Epiphone®, Les Paul®, S.G.®, Flying V®, ES-175®, ES-335® and P-90® are registered trademarks of Gibson Guitar Corporation

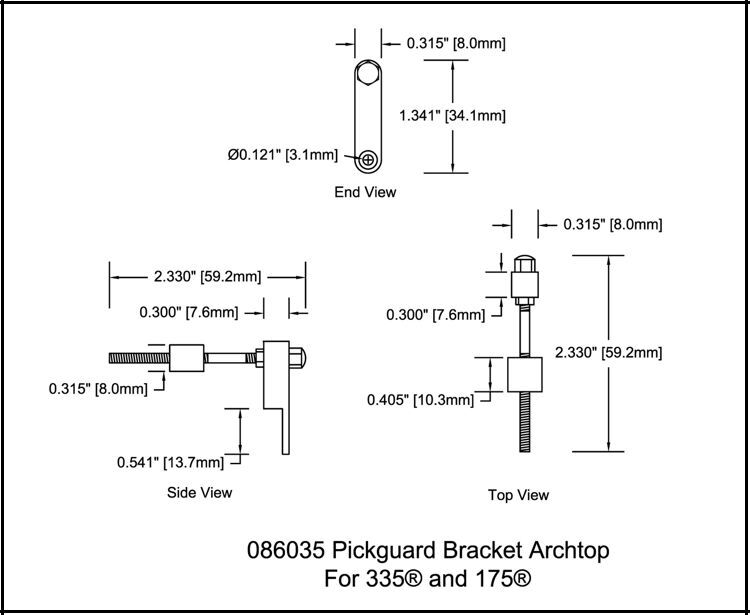

See attached drawing for specific dimensions.
Designed to mount to the side of the guitar body and the underside of the pickguard.
This Product may contain a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
For more info go to www.P65Warnings.ca.gov
See attached drawing for specific dimensions.
Designed to mount to the side of the guitar body and the underside of the pickguard.
This Product may contain a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
For more info go to www.P65Warnings.ca.gov
