Guitar Nut Right Hand 44mm E Style
Bone
Fits Modern Epiphone® Style 44mm width
0.236" Thickness (6.0mm (15/64")
0.368" Height (23/64" or 9.3m) in middle
1.75" length (1 3/4" or 44mm)
This is a bone nut, the product is formed with Bone material.
It is pre-shaped and pre-sized.
This product is produced for Bitterroot Guitars.
We are not associated with the original manufacturer, these parts originate from our suppliers only.
These are not made by the original OEM suppliers.

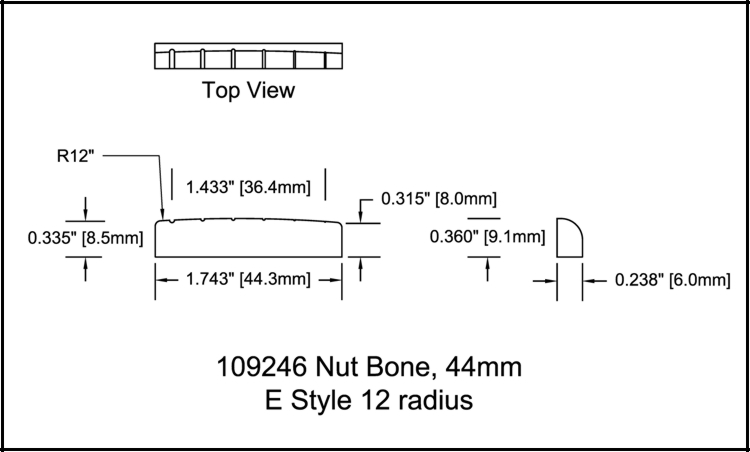

Specifications:
Right Hand
Oxen Bone Nut
0.236" width (6.0mm or 15/64")
0.368" height (23/64" or 9.3mm) in middle
1st string height is 0.324" (5/16" (8.2mm) at top edge of nut
6th string height is 0.350" (8.9mm (11/32")
1.75" width (1 3/4" or 44mm)
String spread is 1 7/16" Typical for width of nut
String slots are set for 12-46 gauge cut.
Note: This is a flat bottom nut similar to many modern G Style nuts, it is not tapered to fit older designs.
Gibson®, Epiphone®, Les Paul®, S.G.®, Flying V®, ES-175®, ES-335® and P-90® are registered trademarks of Gibson Guitar Corporation. The reference is for the purposes of identifying a cross reference for this product, these product are made for us and do not originate from the OEM supplier or source.
Oxen Bone Nut
0.236" width (6.0mm or 15/64")
0.368" height (23/64" or 9.3mm) in middle
1st string height is 0.324" (5/16" (8.2mm) at top edge of nut
6th string height is 0.350" (8.9mm (11/32")
1.75" width (1 3/4" or 44mm)
String spread is 1 7/16" Typical for width of nut
String slots are set for 12-46 gauge cut.
Radius 12"
Depending on your guitar, you may have to sand for height or adjust string slot cut for setup.Note: This is a flat bottom nut similar to many modern G Style nuts, it is not tapered to fit older designs.
Natural Material.
Gibson®, Epiphone®, Les Paul®, S.G.®, Flying V®, ES-175®, ES-335® and P-90® are registered trademarks of Gibson Guitar Corporation. The reference is for the purposes of identifying a cross reference for this product, these product are made for us and do not originate from the OEM supplier or source.
