Nut Flat Bottom 40.5 Tusq S or T RH or LH
12" Radius
Tusq Molded Material
The nut model 5040 is a great option to upgrade the nut on your Ibanez Strat-style electric guitar (or a guitar with similar specs).
It is pre-slotted for a quick and straightforward installation.
Flat bottom.

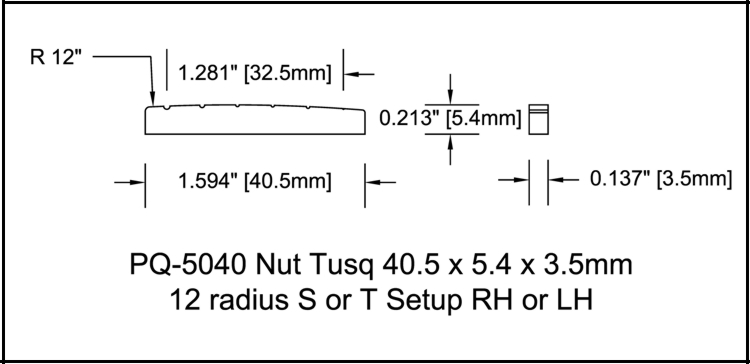

Specifications:
Right or Left Hand 6 string guitar setup
Overall width 1.594" (40.5mm, 1 19/32")
Right or Left Hand 6 string guitar setup
Overall width 1.594" (40.5mm, 1 19/32")
Height in the middle is 0.213" (5.42mm or just under 7/32")
Tusq Molded Material
Tusq Molded Material
Pre-slotted for standard string setup
Overall thickness is 0.137 (3.47mm 9/64")
Upper radius (string) is approximately 12"
String Spread is 1.281" (32.5mm or 1 9/32")
Bottom edge is flat
This product is a shaped molded resin material with Tusq material
Please note: due to the variations in guitar setups, you may need to sand or adjust this part to fit your specific guitar. There are a number of radius and bottom setups, widths and other details that vary from guitar manufacturers, if you have questions, please email us, we will try to answer your questions as to fit, we cannot guarantee fit for specific guitars, there are so many variations from year to year and model to model.
You may need to adjust this product to fit your specific application. This product is a natural product and can vary some in dimension.
