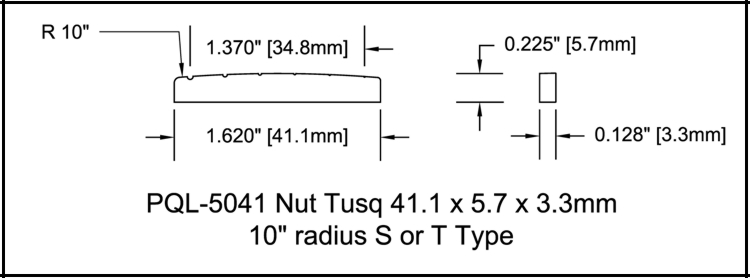

Specifications:

Right or Left Hand 6 string guitar setup
Overall width 1.62" (41.1mm or just under 1 5/8")

Technical Specs:

Height in the middle is 0.225" (5.7mm or just over 7/32")
Tusq Molded Material

Pre-slotted for standard string setup
Overall thickness is 0.128 (3.3mm or just over 1/8")

Upper radius (string) is approximately 10"
String Spread is 1.37" (34.8mm or just under 1 3/8")

Bottom edge is flat

This product is a shaped molded resin material with Tusq material

Please note: due to the variations in guitar setups, you may need to sand or adjust this part to fit your specific guitar. There are a number of radius and bottom setups, widths and other details that vary from guitar manufacturers, if you have questions, please email us, we will try to answer your questions as to fit, we cannot guarantee fit for specific guitars, there are so many variations from year to year and model to model.

You may need to adjust this product to fit your specific application. This product is a natural product and can vary some in dimension.
