Nut, Curved or flat Bottom 43mm 7.25R
Black Tusq for S or T Type Guitars, RIGHT Hand
If you have a Fender® guitar or re-issue from the 1950s-60s or 70s, this is your nut! A 7.25" radius, works with a curved or flat bottom and is permanently lubricated for great tuning stability. It works in both a flat bottom or curved bottom nut slot due to its ingenious design, sand off the tab for a curved bottom.
It is pre-slotted to make for a quick and easy install.
For just about all Fender® electric guitars made in the 1950s, '60 and ’70s… that’s a lot!
The 7.25” fingerboard radius originated in the early 1950s and was used for most Fender electric instruments until the 1980s. In the 80's it was changed to a slightly flatter 9.5" radius.
7.25" Radius
Composite Resin "Tusq" material
Pre-Slotted string locations.
Fits RIGHT HAND GUITAR with OEM Style Notch.

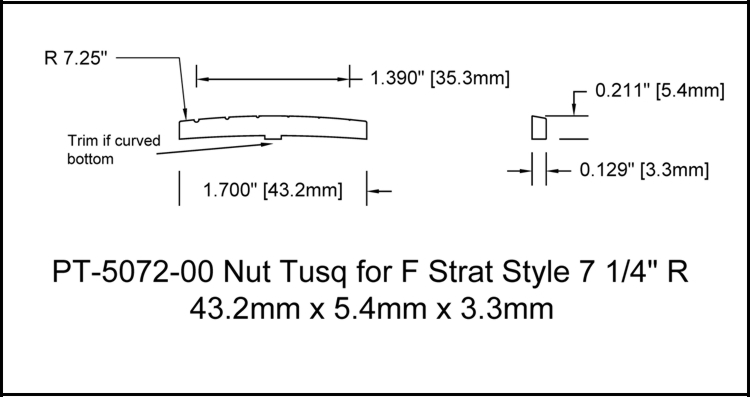

Radius 7.25"
Notched to fit OEM style slot on S or T Type guitars with 7 1/4" radius fretboard
Overall width is 1.70" (43.2mm or 1 49/64")
Thickness is .129" (3.3mm or just over 1/8")
Overall Height Is .211"(5.4mm or 13/64")
String Spread is 1.39" (35.3mm) E to E center to center.
Please note: due to the variations in guitar setups, you may need to sand or adjust this part to fit your specific guitar. There are a number of radius and bottom setups, widths and other details that vary from guitar manufacturers, if you have questions, please email us, we will try to answer your questions as to fit, we cannot guarantee fit for specific guitars, there are so many variations from year to year and model to model.
You may need to adjust this product to fit your specific application.
The parts on this site are made by or for Bitterroot Guitars.
These parts do not originate from the original OEM manufactures unless specifically identified as such.
