Nut Brass for Bass Guitars 1 13/16 Right Hand 5 String
Die Cast Brass Metal
Pre-Slotted string locations.
46.3mm or 1 13/16"

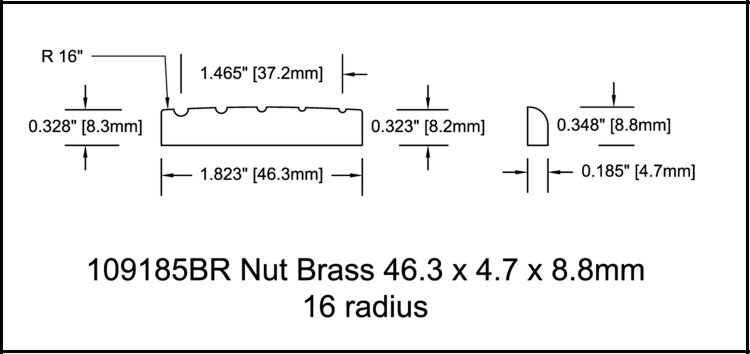

Specifications:
Right Hand
Overall width 1.823" (46.3mm or just over 1 13/16")
Overall Height 0.348" (8.8mm or 11/32")
Overall Thickness 0.185" (4.7mm or 3/16")
Die Cast Brass Metal nut.
Pre-slotted for standard 5 string setup
Overall height at string 1 - 0.323" (just under 21/64" or 8.2mm)
Overall height at string 5 - 0.328" (21/64" or 8.3mm)
Upper radius (string) is 16"
Flat Bottom
Radius 16"
String Spread: 1.465" (37.2mm or 1 15/32")
Preslotted for .045-.130
Fits many Import and US models with shelf type nut.
Please note, you may have to sand or adjust slotting depending upon your setup.
Right Hand
Overall width 1.823" (46.3mm or just over 1 13/16")
Overall Height 0.348" (8.8mm or 11/32")
Overall Thickness 0.185" (4.7mm or 3/16")
Die Cast Brass Metal nut.
Pre-slotted for standard 5 string setup
Overall height at string 1 - 0.323" (just under 21/64" or 8.2mm)
Overall height at string 5 - 0.328" (21/64" or 8.3mm)
Upper radius (string) is 16"
Flat Bottom
Radius 16"
String Spread: 1.465" (37.2mm or 1 15/32")
Preslotted for .045-.130
Fits many Import and US models with shelf type nut.
Please note, you may have to sand or adjust slotting depending upon your setup.
