Nut Brass for Bass Guitars 1 1/2 Right Hand 4 String
Die Cast Brass Metal
Pre-Slotted string locations.
38.4mm or 1 1/2"

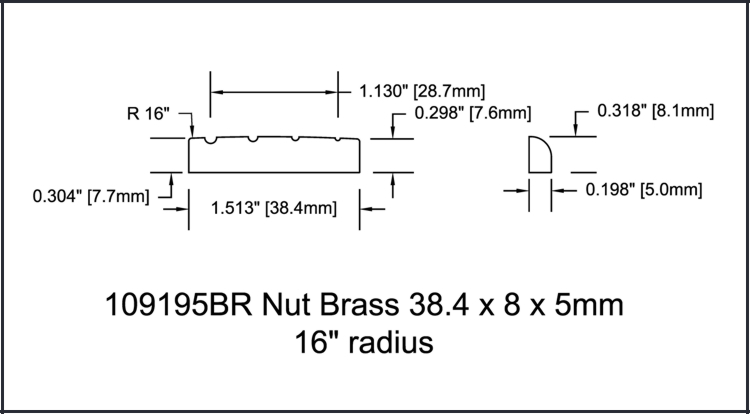

Specifications:
Right Hand
Overall width 1.513" (38.4mm or 1 1/2")
Overall Height 0.318" (8.1mm or 5/16")
Overall Thickness 0.198" (5.0mm or just over 3/16")
Die Cast Brass Metal nut.
Pre-slotted for standard 4 string setup
Overall height at string 1 - 0.298" (19/64" or 7.6mm)
Overall height at string 4 - 0.304" (just over 19/64" or 7.7mm)
Upper radius (string) is 16"
Flat Bottom
Radius 16"
String Spread: 1.13" (28.7mm just over 1 1/8")
Preslotted for .040-.105
Fits many Import and US models with shelf type nut.
Please note, you may have to sand or adjust slotting depending upon your setup.
Right Hand
Overall width 1.513" (38.4mm or 1 1/2")
Overall Height 0.318" (8.1mm or 5/16")
Overall Thickness 0.198" (5.0mm or just over 3/16")
Die Cast Brass Metal nut.
Pre-slotted for standard 4 string setup
Overall height at string 1 - 0.298" (19/64" or 7.6mm)
Overall height at string 4 - 0.304" (just over 19/64" or 7.7mm)
Upper radius (string) is 16"
Flat Bottom
Radius 16"
String Spread: 1.13" (28.7mm just over 1 1/8")
Preslotted for .040-.105
Fits many Import and US models with shelf type nut.
Please note, you may have to sand or adjust slotting depending upon your setup.
