Nut for P Bass Guitars RH or LH 4 String
Bone
Pre-Slotted string locations.
41.9mm or 1 41/64"

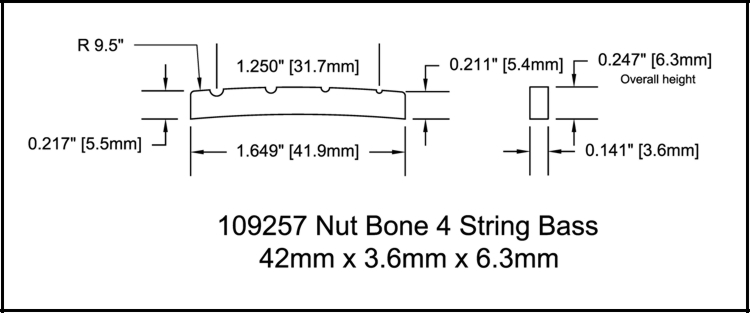

Specifications:
Right or Left Hand
Overall width 1.649" (1 41/64" or 41.9mm)
Bone nut.
Pre-slotted for standard 4 string setup
String Spread is 1.25" (31.7mm).
Overall height at string 1 - 0.211" (slightly over 13/64" or 5.4mm)
Overall height at string 4 - 0.217" (7/32" or 5.5mm)
Upper radius (string) is 9.5"
Right or Left Hand
Overall width 1.649" (1 41/64" or 41.9mm)
Bone nut.
Pre-slotted for standard 4 string setup
String Spread is 1.25" (31.7mm).
Overall height at string 1 - 0.211" (slightly over 13/64" or 5.4mm)
Overall height at string 4 - 0.217" (7/32" or 5.5mm)
Upper radius (string) is 9.5"
Curved Bottom
Overall Thickness is .141" (3.6mm or 9/64")
Overall Thickness is .141" (3.6mm or 9/64")
Overall height in middle is 0.247" (6.3mm or just under 1/4"). Please note this dimension is for reference only, the part is curved on the bottom which creates this height. Actual nut with curve is 0.211" - 0.217" tall depending on the end of the nut.
Pre-slotted for .035-.105
Fits many P Bass and similar setups
Please note, you may have to sand or adjust slotting depending upon your setup.
Pre-slotted for .035-.105
Fits many P Bass and similar setups
Please note, you may have to sand or adjust slotting depending upon your setup.
