Nut for J Bass Guitars RH or LH 4 String
Bone
Pre-Slotted string locations.
39.5mm or 1 35/64"

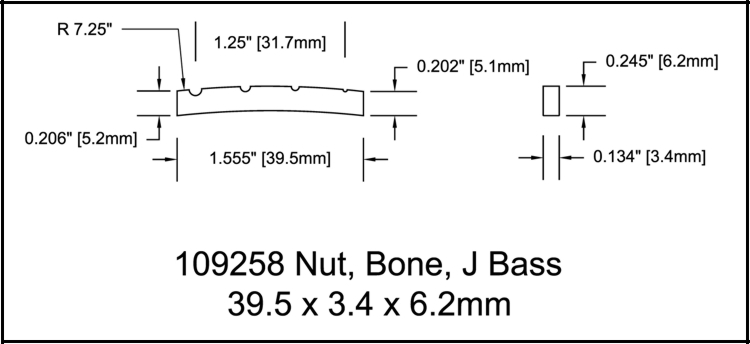

Specifications:
Right or Left Hand
Overall width 1.555" (1 35/64" or 39.5mm)
Bone nut.
Pre-slotted for standard 4 string setup
String Spread is 1.25" (31.7mm).
Overall height at string 1 - 0.202" (13/64" or 5.1mm)
Overall height at string 4 - 0.206" (just over 13/64" or 5.2mm)
Upper radius (string) is 7.25"
Right or Left Hand
Overall width 1.555" (1 35/64" or 39.5mm)
Bone nut.
Pre-slotted for standard 4 string setup
String Spread is 1.25" (31.7mm).
Overall height at string 1 - 0.202" (13/64" or 5.1mm)
Overall height at string 4 - 0.206" (just over 13/64" or 5.2mm)
Upper radius (string) is 7.25"
Curved Bottom
Overall Thickness is .134" (3.4mm or just over 1/8")
Overall Thickness is .134" (3.4mm or just over 1/8")
Overall height in middle is 0.245" (6.2mm or just under 1/4"). Please note this dimension is for reference only, the part is curved on the bottom which creates this height. Actual nut with curve is 0.202" - 0.206" tall depending on the end of the nut.
Pre-slotted for .035-.105
Fits many P Bass and similar setups
Please note, you may have to sand or adjust slotting depending upon your setup.
Pre-slotted for .035-.105
Fits many P Bass and similar setups
Please note, you may have to sand or adjust slotting depending upon your setup.
