Cylinder Style End pin, 4 conductor Stereo Jack, 1/4"
End Pin style Gold Finish with nut and washer.
Thick panel design for Acoustic guitar
Cylinder Style for 1/4" jacks, 4 conductor, End pin Black finished jack.
Setup ready for soldering to your project
Specifications:
Cutout type 4 conductor jack.

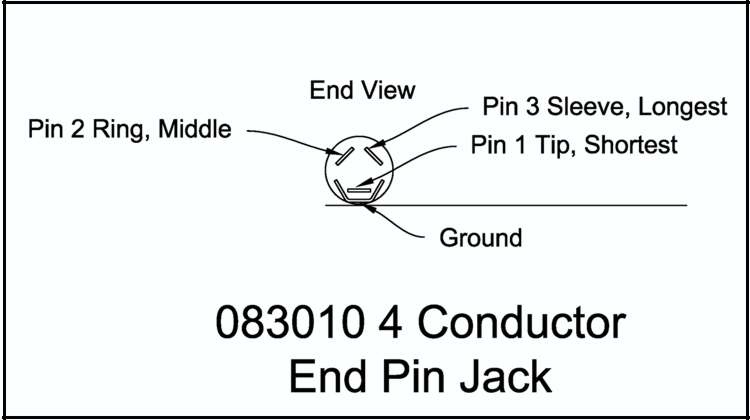

TRS (tip, ring, sleeve) setup to have 2 separate lines plus ground and cutout.
Can be wire for separate piezo and magnetic outputs.
Requires 31/64" mounting hole.
Overall Length is 1 5/32" on thread and 2 3/8" body length including solder points and 3/8" extension beyond body.
End pin cap is separate and removal with nut and washer to allow for adjustment.
1/4" Stereo Jack setup
5/8" end pin collar on front of jack.
Requires soldering
Cutout type 4 conductor jack.
TRS (tip, ring, sleeve) setup to have 2 separate lines plus ground and cutout.
Can be wire for separate piezo and magnetic outputs.
Requires 31/64" mounting hole.
Overall Length is 1 5/32" on thread and 2 3/8" body length including solder points and 3/8" extension beyond body.
End pin cap is separate and removal with nut and washer to allow for adjustment.
1/4" Stereo Jack setup
5/8" end pin collar on front of jack.
Requires soldering
