Rectangular Fret Inlay, 9 piece with Slash
Abalone Slash with Mother of Pearl sides.
9 Pieces in set.
Overall thickness 0.069" (just over 1/16" or 1.75mm) Rectangular Fret Inlay, 9 piece
This set is for 9 pieces of approximately 0.069" (just over 1/16" or 1.75mm) thick inlay.
Enough material to allow all fret board radius and sanding of the fret board.

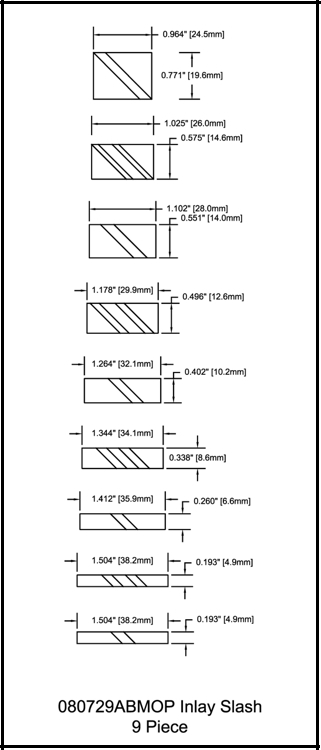

Pieces are: (approximate sizes and will vary some due to the nature of the product)
Fret #1 --0.964" (61/64" 24.5mm) wide by 0.771" (49/64" 19.6mm) high
Fret #3 --1.025" (1 1/64" 26mm) wide by 0.575" (9/16" 14.6mm) high
Fret #5 --1.102" (just under 1 7/64" 28mm) wide by 0.551" (35/64" 14mm) high
Fret #7 -- 1.178" (just under 1 3/16" 29.9mm) wide x 0.498" (31/64"12mm) high
Fret #9 -- 1.264" (1 17/64" 32.1mm) wide x 0.402" (13/32" 10.2mm) high
Fret #12 -- 1.344" (1 11/32" 34.1mm) wide x 0.338" high (21/64" 8.6mm) high
Fret #15 -- 1.412" (1 13/32" 35.9mm) wide x 0.26" (17/64" 6.6mm) high
Fret #17 -- 1.504" (1 1/2" 38.2mm) wide x 0.193" (3/16" 4.9mm) highFret #19 -- 1.054" (1 1/2" 38.2mm) wide x .0193" (3/16" 4.9mm) high
PLEASE NOTE: This is a natural product, the photo shown is a representation of the product, color, hue and other details will vary from piece to piece due to natural variations in the shell. The pearl thickness is slightly more then the listing dimension to allow for a clean sanding to the abalone.
The pieces are tape on the face for assembly and primed on the rear for bonding. The tape will need to be removed prior to sanding.
Because this product is prepared for installation, it is difficult to photo individual sets.
This does require a skill level for inlay and fret work. It is not recommended for direct replacement part unless you have the skills to do the work.
Please contact us with questions regarding this product.
