Bridge 6 String Wrapover 52.5mm 82mm centers
52.5mm string spread (10.5mm saddles) (2 1/16")
Wide width bridge 19.8mm front to back (25/32")
82mm post centers.
12" Radius
Chrome finish

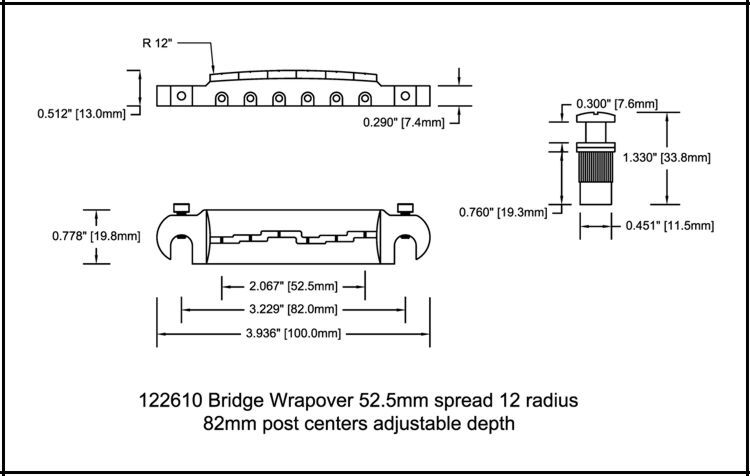

Specifications:
52.5mm String spread (10.5mm per saddle) (2.067" or 2 1/16")
Bridge Length is 3.938" (100mm or 3 15/16")
Bridge Depth is 0.778" (19.8mm or 25/32")
Bridge height in middle is 0.512" (13mm or just over 1/2")
Post center to center 82mm (3.229" or just under 3 15/64")
Post Thread is M8 x 1.25.
Post top is slotted for adjustment.
Frame width (front to back) 19.8mm (just under 25/32") depth.
Saddles are fixed, non-adjustable.
Bushing bottom dimension 11.5mm (0.451" or 29/64")
Bushing middle dimension is tapered (lower 0.477" or 12mm, upper is 0.484" or 12.25mm)
12" Radius on Bridge setup
.
Cast saddle with curved string mount.
Chrome finish
