Bridge 6 String Tailpiece Combo Adjustable 52.5mm

81.7mm centers

Fully adjustable for intonation.

52.5mm string spread (10.5mm saddles) (2 1/16")

Wide width bridge front to back 1.015" (25.8mm or 1 1/64")

81.7mm post centers.

12" Radius

Chrome finish

Strings feed through back of bridge body.

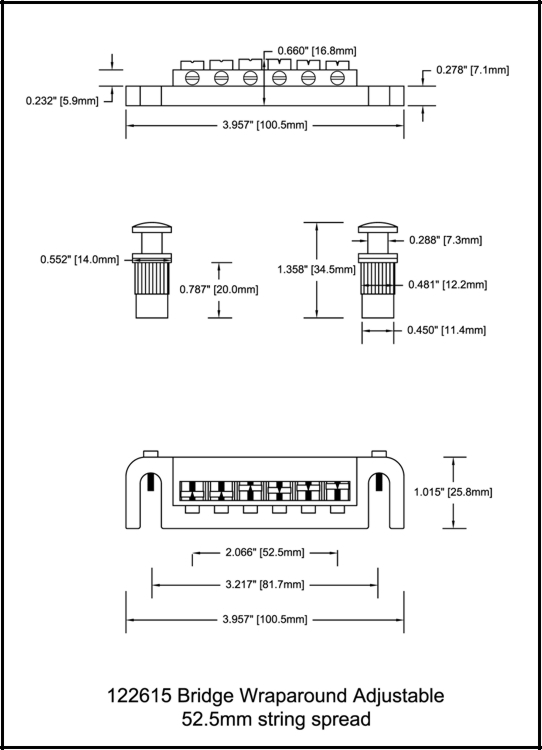

Specifications:

52.5mm String spread (10.5mm per saddle) (2.067" or 2 1/16")

Bridge Length is 3.957" (100.5mm or 3 61/64")

Bridge Depth is 1.015" (25.8mm or 1 1/64")

Bridge height in middle is 0.66" (16.8mm or just over 21/32")

Post center to center 81.7mm (3.217" or 3 7/32")
Post Thread is M8 x 1.25.
Post top is slotted for adjustment.

Frame width (front to back) 25.8mm (1 1/64") depth.
Saddles are Adjustable

Bridge is adjustable on post allowing for full intonation

Strings mount through back of Bridge (underside)

Bushing bottom dimension 11.4mm (0.450" or 29/64") Designed for 12mm mounting hole

Bushing middle dimension is tapered (lower 0.481" or 12.2mm, upper is 0.484" or 12.25mm)


12" Radius on Bridge setup
.
Cast saddle with curved string mount.

Chrome finish
