Bridge, Hardtail Style, Wrap Body, Chrome Finish
String through body style (use ferrules on rear of body for string guide
(Ferrules are not included in this kit, order separately).
52.5mm String Spread (2 1/16")
1 25/32" deep x 3 1/64" Wide
Mounting holes are on 10.2mm centers (0.4016" or just under 13/32")

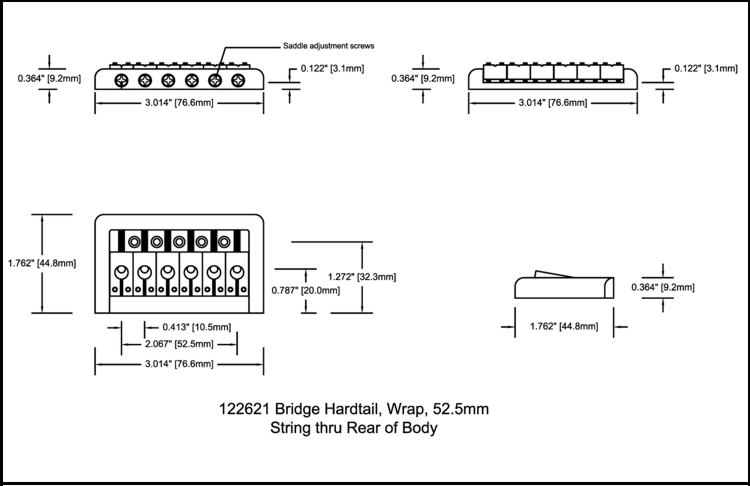

Specifications:
Hardtail with wrap around edge string through body mount.
52.5 mm String Spread (2 1/16") center of saddle (High E) to center of saddle (Low E)
Overall width 3 1/64" (3.014" or 76.6mm)
Overall depth 1 25/32" (1.762" or 44.8mm)
Rear mounting holes are 0.4016" (10.2mm or just under 13/32") on center (5 holes)
All saddles are die cast and adjustable for height and intonation.
Countersunk mounting holes
Includes 5 mounting screws and allen key
Bridge Mounting holes are 1.272" (32.3mm or just over 1 17/64") off the front of the bridge
String through holes are 0.787" (20.0mm or 25/32") off front of the bridge
Bridge plate is Die Cast Metal
Saddle are Die Cast
Chrome Finish
