Maple Bridge with Ebony cap Rick Sampson
Pre Slotted for 5 string setup
Natural Hard Rock Maple with Ebony top
Natural Hard Rock Maple with Ebony top
Made in the USA
Length: 3.15" (80.0mm or 3 9/64")
Width: 0.236" (6.0mm or 15/64") does taper from end to end to 0.254"

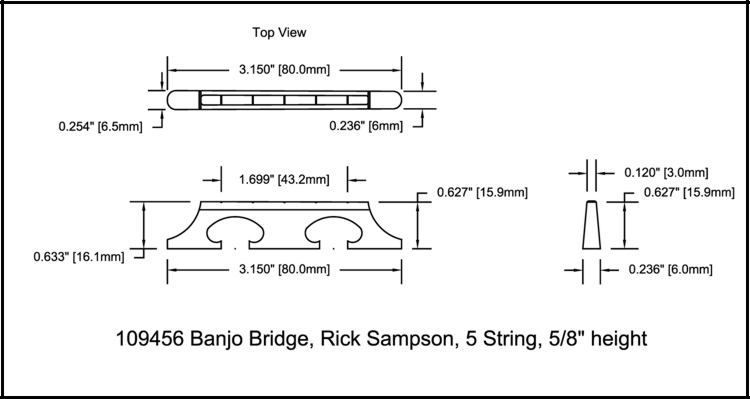

Height: 0.627" See drawing, slightly tapered (15.9mm or just over 5.8")
String Spread 1.699" (43.2mm or 1 11/16")
Please Note: This is a natural product, variations will occur in the appearance of the product you receive, every effort is made to provide a consistent appearance, but some variations will occur.
Length: 3.15" (80.0mm or 3 9/64")
Width: 0.236" (6.0mm or 15/64") does taper from end to end to 0.254"
Height: 0.627" See drawing, slightly tapered (15.9mm or just over 5.8")
String Spread 1.699" (43.2mm or 1 11/16")
Please Note: This is a natural product, variations will occur in the appearance of the product you receive, every effort is made to provide a consistent appearance, but some variations will occur.
Specifications:
Pre Slotted for 5 string setup
Manufactured by Rick Sampson in Wisconsin
Natural Hard Rock Maple with Ebony top
Seasoned close grain hard wood maple with ebony cap for long wear
5/8" height for use with modern instruments or new builds
Natural Hard Rock Maple with Ebony top
Seasoned close grain hard wood maple with ebony cap for long wear
5/8" height for use with modern instruments or new builds
Length: 3.15" (80.0mm or 3 9/64")
Width: 0.236" (6.0mm or 15/64") does taper from end to end to 0.254"
Height: 0.627" See drawing, slightly tapered (15.9mm or just over 5.8")
String Spread 1.699" (43.2mm or 1 11/16")
Width: 0.236" (6.0mm or 15/64") does taper from end to end to 0.254"
Height: 0.627" See drawing, slightly tapered (15.9mm or just over 5.8")
String Spread 1.699" (43.2mm or 1 11/16")
