Archtop Bridge with tom saddle Rosewood
Adjustable
Natural Wood, Rosewood, Nickel Trim
Length: 5.971" (5 31/32" or 151.7mm)
Width: 0.546" (Tapered 35/64" or 14.1mm)
Height: 0.964" (61/64" or 24.5mm)
Arch Top with tom metal bridge and saddles
This Product may contain a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
For more info go to www.P65Warnings.ca.gov

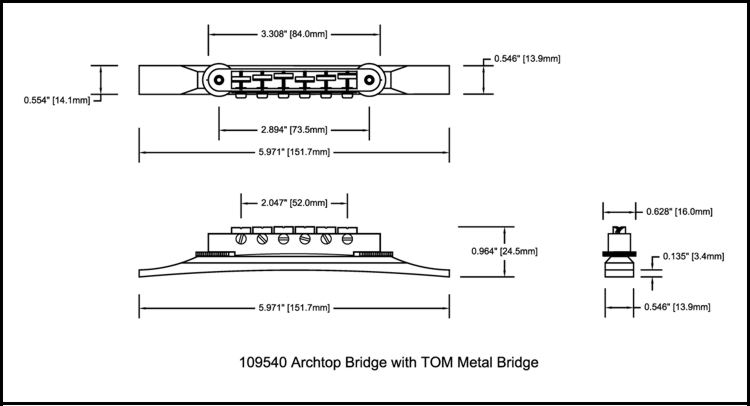

Specifications:
Rosewood Bridge with tom metal adjustable bridge and saddles, Adjustable
Natural Wood, Rosewood unfinished, Nickel Trim
Rosewood Bridge with tom metal adjustable bridge and saddles, Adjustable
Natural Wood, Rosewood unfinished, Nickel Trim
Radius 12" on top of bridge
Length: 5.971" (5 31/32" or 151.7mm)
Width: 0.546" (Tapered 35/64" or 14.1mm)
Height: 0.964" (61/64" or 24.5mm)
Adjustable 24.5mm (61/64") - 27.6mm (1 5/64")
Arched Top Bottom
String spacing is 2.047 (52mm or 2 3/64")
Length: 5.971" (5 31/32" or 151.7mm)
Width: 0.546" (Tapered 35/64" or 14.1mm)
Height: 0.964" (61/64" or 24.5mm)
Adjustable 24.5mm (61/64") - 27.6mm (1 5/64")
Arched Top Bottom
String spacing is 2.047 (52mm or 2 3/64")
