OPEN FRAME ACOUSTIC GUITAR TUNERS
3 PLUS 3 SET FOR GUITAR

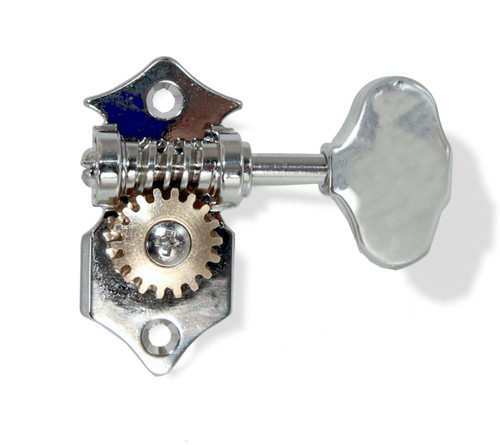

Bitterroot Custom Shop Guitar Open Frame Tuning Machines. Our custom shop tuners are used on our custom build guitars. These are an excellent quality tuner at a very reasonable price.
3 Right Hand and 3 Left Hand Configuration. Works for acoustic guitars and electric (vintage look).
3 Plus 3 Setup for Guitars
Custom shop open frame tuners.
18:1 ratio
Gold Finish

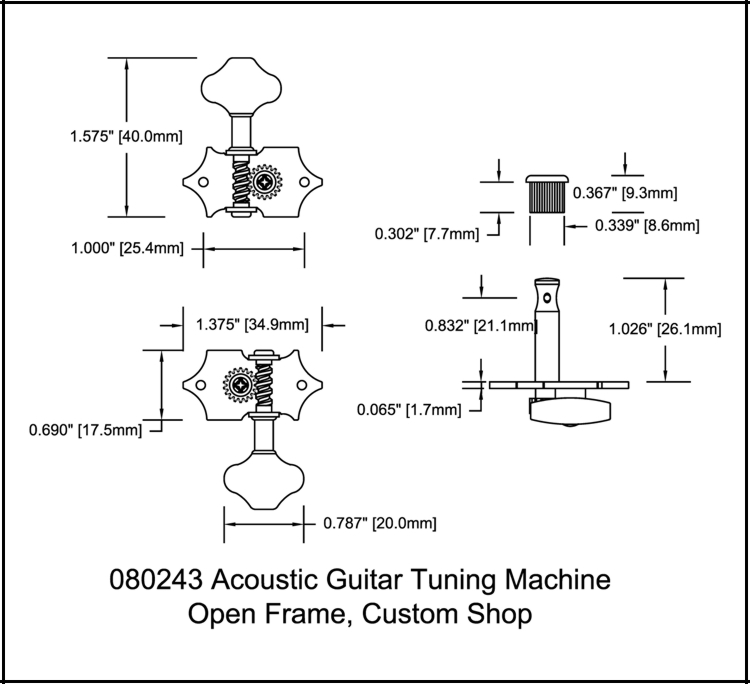

Specifications:
18 to 1 gear ratio, Open Frame Nickel tuners with Nickel Vintage Style Knobs.
Knob Size is 20mm (25/32")
Mounting Hole size is .339" (8.6mm or just over 21/64" and just under 11/32")
Body Size 1.375" (1 3/8" or 34.9mm) x 0.69" (11/16" or 17.5mm)
Press fit Bushing for 339" (8.6mm or just over 21/64" and just under 11/32")
Shaft Length (Body to tip) 1.026" (1 1/32" or 26mm)
Mounting hole spacing 1.0" (25.4mm)
Vintage inspired Butterbean Button is not only comfortable to hold, but provides that traditional style and look
Gear Ratio 18:1
Gold Finish
Kit includes:
3 Right Hand and 3 Left Hand Open Face Tuning Machines with Bushing, 12 mounting screws.
Note: (Use #50 drill to seat mounting screws)
The parts on this site are made by or for Bitterroot Guitars.
These parts do not originate from the original OEM manufactures unless specifically identified as such.
