MANDOLIN TAILPIECE Screw On Nickel Finish
This is the classic two-piece mandolin tailpiece that’s been the standard for over 100 years. Made of rugged steel and brightly nickel-plated, it features a base with hooks to anchor the strings and a removable, sliding steel cover that locks on to the base for appearance and protection. This tailpiece is suitable for both flat and arched model mandolins.
- Traditional 1920’s style design suitable for F and A-model mandolins
- Triple nickel-plated steel construction offers unsurpassed strength, durability and a true vintage look
- Removable coverplate makes string changes fast and easy
- Pre-drilled for endpin installation and all mounting screws provided
Quality stamped steel, 8 string
Stamped Steel Tail stop with mounting screws
For loop type strings
Nickel Finish

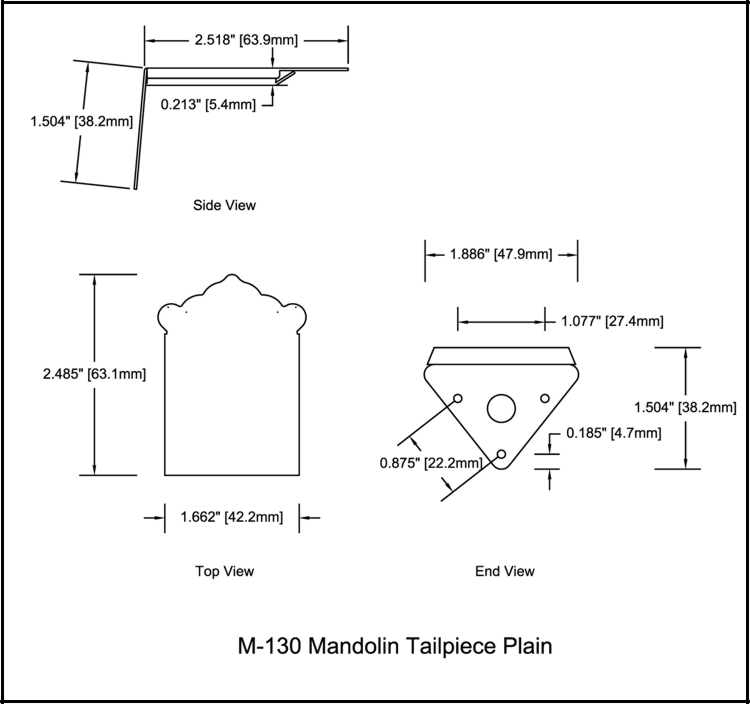

Specifications:
Stamped Steel, Clamshell slide on style two piece tailpiece
Steel is 0.03"
Top: Plain top with scroll on end.
Overall length is 2.485" (63mm or 2 31/64")
Width is 1.662" (42.2mm or 1 21/32")
Overall height with base 0.213" (5.4mm or just under 7/32")
Base:
Overall length 1.815"
Overall width is 1.60", edge is formed to capture slide on top
String spread 1.13"
Tail:
Triangular shape tail with 3 mounting holes (.099" diameter)
Unit has end pin hole 0.325"
Mounting Hole dimensions:
Hole diameter is 0.099" (just over 3/32")
Top mounting holes are approximately 1.07" apart (just over 1 1/16").
Bottom mounting holes is on center approximately 0.6875" (11/16") down from the first set of mounting holes. Just under 3/16" from the bottom of the plate
Kit comes with:
Tailpiece
3 mounting screws in matching finish.
Nickel Finish
