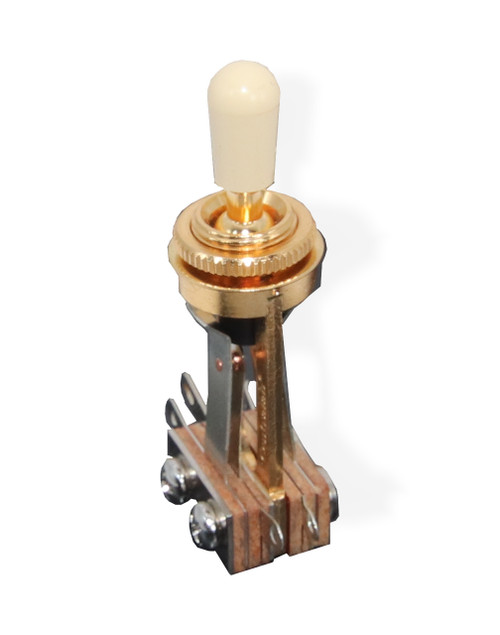

Toggle Switch Centralab 3 Way Long Frame
The Centralab® 3 Position Long Frame Toggle Switch brings extended reach and rock-solid durability to your guitars pickup selection. Gold finish, this long frame toggle offers smooth, silent transitions with the unmistakable Centralab quality. Whether you're upgrading a vintage instrument or outfitting a custom build, this switch provides both style and substance.
- Finish: Gold
- Extended Frame: Perfect for thicker guitar tops or custom builds requiring longer reach
- Smooth, Silent Action: Reliable, noise-free operation in every position
- Mounting Compatibility: Versatile design fits guitars needing a long frame toggle switch
Specifications:
Long Frame 3 Way Toggle Centralab
Works for 2 or 3 pickup setups.
Toggle Type Switch, Spring Loaded, 3 Way

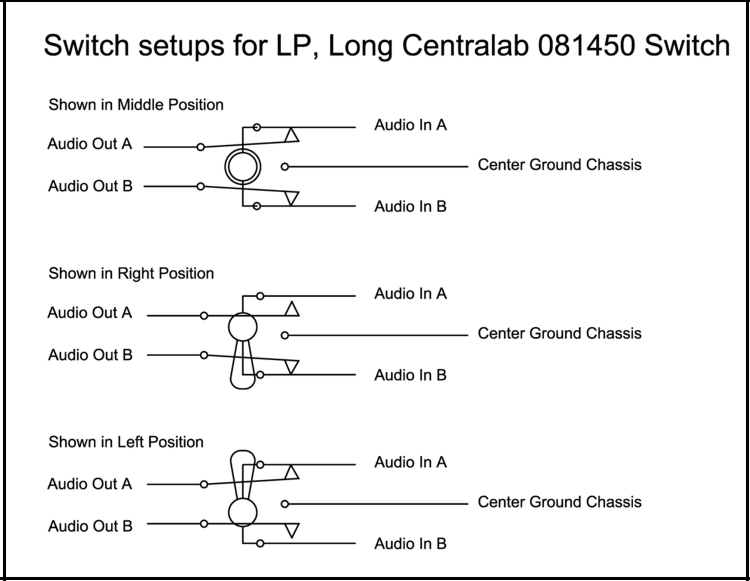

Switch has common ground with 2 input poles and 2 output poles
Ground lug is on rear of unit
Solder lugs on contact points.
Includes nut and washer in gold trim
Spring Loaded Switch

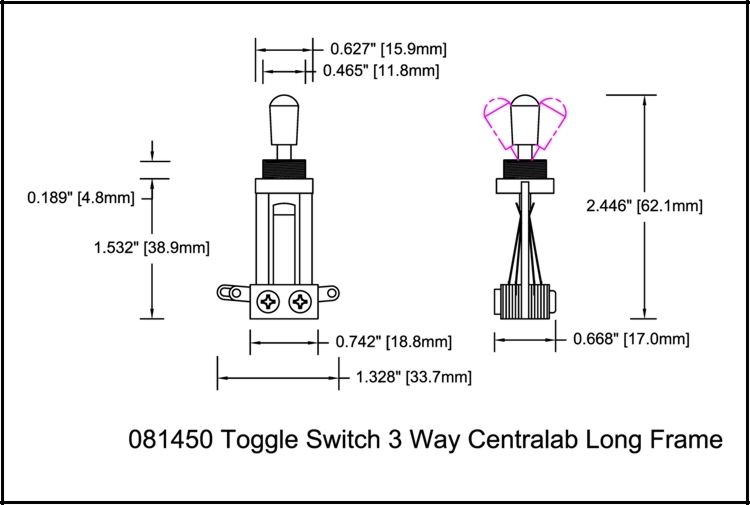

Depth (front to back at bottom of switch) 1.328" (1 21/64" or 33.7mm)
Chassis requires cavity depth of 1 11/16" minimum
The lower Chassis is gold finish
Requires a 0.465" (15/32" or 11.8mm) Mounting hole
Includes knurled nut and washer in Gold color
Knob is threaded Ivory plastic knob.
Maximum panel thickness for mounting is 0.1562" (5/32")
Panel mount is step into chassis
Ratings:
3A at 300W, fine silver contacts.
Ratings:
3A at 300W, fine silver contacts.
